Rocosoft RS-232 VISCA Extendable Control Cable Sets

Our Single-Cam RS-232 VISCA control sets allow you to connect a single camera to a computer, which lets you control the camera using a single Ethernet Cable and our cable set.

Sony SRG-BRC-EVI RS-232 VISCA USB Control Extendable Balun Cable

Control USB VISCA Balun Cable

    $199.95

View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • Can be extended up to 1000ft with any standard CAT5/5E/6 Ethernet network patch cable
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
USB RS-232 VISCA PTZ Control Extendable Cable Set

Multi-Cam Control USB VISCA Balun Cable Set




View features. . .
  • Allows connection of multiple cameras to a computer via USB using Ethernet cables
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • Can be extended up to 1000ft with any standard CAT5/5E/6 Ethernet network patch cable
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
Sony SRG-BRC-EVI RS-232 VISCA USB Control-Power Extendable Balun Cable

Control/Power USB VISCA Balun Cable

    $399.95

View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • The max extension distance for control is 1000ft.
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • The max extension distance for power is 100-180ft with a 15v5a power supply (depends on the camera) and 70-150ft with a stock 12v power supply.
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details.
USB RS-232 VISCA PTZ Control-Power Extendable Cable Set

Multi-Cam Control/Power USB VISCA Balun Cable




View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • The max extension distance for control is 1000ft.
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • The max extension distance for power is 100-180ft with a 15v5a power supply (depends on the camera) and 70-150ft with a stock 12v power supply.
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details.
Sony SRG-BRC-EVI RS-232 VISCA USB Control-Power-Video Extendable Balun Cable

Control/Video/Power USB VISCA Balun Cable

    $549.95

View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • The max extension distance for control is 1000ft.
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for the video signal with the Control/Power/Video set is 400ft
  • Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc.
  • The max extension distance for control is 1000ft
USB RS-232 VISCA PTZ Control-Video-Power Extendable Cable Set

Multi-Cam Control/Video/Power USB VISCA Balun Cable Set




View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • The max extension distance for control is 1000ft.
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for the video signal with the Control/Power/Video set is 400ft
  • Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc.
  • The max extension distance for control is 1000ft
Sony SRG-BRC-EVI RS-232 VISCA USB Control-Power-Video Extendable Balun Cable

Control/HD-SDI Video/Power USB VISCA Balun Cable

    $899.95

View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • The max extension distance for control is 1000ft.
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for the full HD-SDI video signal with the Control/Power/HD-SDI Video set is 130ft using CAT6 cable
  • It is backward compatible with Composite video. The max extension distance for Composite video with this set is 400ft
  • HD-SDI Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc.
  • The max extension distance for control is 1000ft
USB RS-232 VISCA PTZ Control-HD-SDI Video-Power Extendable Cable Set

Multi-Cam Control/HD-SDI Video/Power USB VISCA Balun Cable Set




View features. . .
  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • The max extension distance for control is 1000ft.
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for the full HD-SDI video signal with the Control/Power/HD-SDI Video set is 130ft using CAT6 cable
  • It is backward compatible with Composite video. The max extension distance for Composite video with this set is 400ft
  • HD-SDI Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc.
  • The max extension distance for control is 1000ft
Description
Technical Specifications

RS-232 Cable Sets Description

Each Single-Cam set contains two Baluns (small black boxes), one that has a control cable designed for the camera and the other with a USB cable that plugs into the computer. Each Balun also has an RJ-45 Ethernet connector which you use to connect the two Baluns together with a CAT-5 cable.

If a set includes power, that means the Balun with the USB cable also includes a small 12 power jack into which you plug your power source. The second Balun, the one that has the Control cable, also has a Power cable which plugs into the Camera to provide Power to the camera. The same idea goes for sets that include Video. This means you can provide Control, Video, and Power to your camera simultaneously, all over a single Ethernet cable.

These sets can also be used to connect the first camera in a daisy chain to a computer.

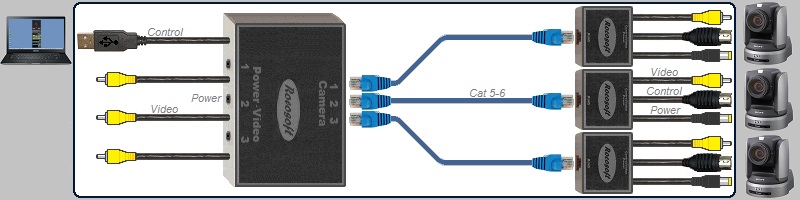

The same idea goes for the Multi-Cam sets, however each set also comes with a Main Unit (large black box), to which all the Baluns connect via an Ethernet cable. For example, a Three Cam Control/Power set would include the Main Unit which contains three RJ-45 connectors, three 12v power jacks for POE, and a USB cable, and then three small boxes each with DIN-8 control cables and a 12v Power Cable sticking out of them.

All of our Cable Sets are made by hand by our skilled Technicians. Because of this, we are able to focus heavily on reliability - our hardware sets are practically indestructible.

RS-232 USB VISCA Set Features

  • Allows VISCA PTZ camera control from any computer, tablet, laptop, or any live production, broadcasting or webcasting PC
  • Quick and easy setup - minimal cables
  • Control can be extended up to 1000ft with any standard CAT5/5E/6 Ethernet network patch cable
  • Creates a virtual COM port on the PC, accessable by any PTZ camera control software
  • No drivers needed – uses internal Windows FTDI drivers
  • Features USB COM Port Number Retention – the COM port number will stay the same when connecting our adapter to a different USB port
  • Works with all PTZ control software applications

Single-Cam Cable Sets

Manufacturer

Rocosoft Inc.

Operating Systems

Windows Vista, Windows 7, Windows 8, Windows 8.1, and Windows 10.
All TriCaster Systems.
All vMix Systems.
All other Windows-based Live Production Systems

Supported Cameras

Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
NewTek: NDI NDIHX PTZ1
Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
Datavideo: PTC-120, PTC-100, PTC-150
Elmo: PTC-100s
Infocus: INF-SPTZ-2 REALCAM
Marshall: VISCA Cameras
Hitachi: VISCA Cameras
Bolin: VISCA Cameras
Ross: Pivotcam
1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
All other PTZ cameras with a Mini Din8 RS-232 connector

Cable Type

FTDI USB to VISCA RS-232 RJ45

Control Set Details

Two Baluns - Camera-Side and Computer-Side.

Computer-Side Balun: RJ45 for Camera-Side Balun Connection. RS-232 USB for Computer Connection.

Camera-Side Balun: RJ45 for Computer-Side Balun Connection, DIN8 in Cable for Camera Connection.

Control/Power Sets

Computer-Side Balun: RJ45 for Camera-Side Balun Connection. RS-232 USB for Computer Connection. 12v Power Jack for Power input.

Camera-Side Balun: RJ45 for Computer-Side Balun Connection, DIN8 in Cable for Camera Connection. 12v Power Output Cable for Camera.

Control/Video/Power Sets

Computer-Side Balun: RJ45 for Camera-Side Balun Connection. RS-232 USB for Computer Connection. 12v Power Jack for Power input. Composite Video Jack for Video output.

Camera-Side Balun: RJ45 for Computer-Side Balun Connection, DIN8 in Cable for Camera Connection. 12v Power Output Cable for Camera. Composite Video Cable for Video input.

Control/HD-SDI Video/Power Sets

Computer-Side Balun: RJ45 for Camera-Side Balun Connection. RS-232 USB for Computer Connection. 12v Power Jack for Power input. BNC Plug for Video output.

Camera-Side Balun: RJ45 for Computer-Side Balun Connection, DIN8 in Cable for Camera Connection. 12v Power Output Cable for Camera. HD-SDI Cable for Video input.

Number of Cameras

1

Multi-Cam Cable Sets

Manufacturer

Rocosoft Inc.

Operating Systems

Windows Vista, Windows 7, Windows 8, Windows 8.1, and Windows 10.
All TriCaster Systems.
All vMix Systems.
All other Windows-based Live Production Systems

Supported Cameras

Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
NewTek: NDI NDIHX PTZ1
Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
Datavideo: PTC-120, PTC-100, PTC-150
Elmo: PTC-100s
Infocus: INF-SPTZ-2 REALCAM
Marshall: VISCA Cameras
Hitachi: VISCA Cameras
Bolin: VISCA Cameras
Ross: Pivotcam
1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
All other PTZ cameras with a Mini Din8 RS-232 connector

Cable Type

FTDI USB to VISCA RS-232 RJ45

Control Set Details

Main Unit: RS-232 USB cable for Computer Connection, 1 RJ45 connector per Camera.

Baluns*: RJ45 Connector for Main connection, DIN8 in/out cables for Camera Connection.

*1 Balun per camera

Control/Power Sets

Main Unit: RS-232 USB cable for Computer Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera.

Baluns*: RJ45 Connector for Main connection, DIN8 in/out cables for Camera Connection, 12v Power Output Cable for Camera.

*1 Balun per camera

Control/Video/Power Sets

Main Unit: RS-232 USB cable for Computer Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera, 1 Composite Video Output Jack for each Camera.

Baluns*: RJ45 Connector for Main connection, DIN8 in/out cables for Camera Connection, 12v Power Output Cable for Camera, Composite Video Input Cable.

*1 Balun per camera

Control/HD-SDI Video/Power Sets

Main Unit: RS-232 USB cable for Computer Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera, 1 BNC Video Output Plug for each Camera.

Baluns*: RJ45 Connector for Main connection, DIN8 in/out cables for Camera Connection, 12v Power Output Cable for Camera, HD-SDI Video Input Cable.

*1 Balun per camera

Number of Cameras

2, 3, or 4.
Contact us for 5-Cam+ sets.
