Sony RM-BR300/IP10 Controller Cables

Our VISCA PTZ Control Extendable Cable Sets allow you to connect multiple cameras to Sony RM-BR300 or RM-IP10 Joystick Controllers via a few Ethernet Cables and a single input Cable.

Sony RM-BR300-IP10 RS-232 VISCA PTZ Control Extendable Cable Set

RS-232 Control Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for control is 1000ft.
Sony RM-BR300-IP10 RS-422 VISCA PTZ Control Extendable Cable Set

RS-422 Control Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for control is 4000ft.
Sony RM-BR300-IP10 RS-232 VISCA PTZ Control-Power Extendable Cable Set

RS-232 Control/Power Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for control is 1000ft.
Sony RM-BR300-IP10 RS-422 VISCA PTZ Control-Power Extendable Cable Set

RS-422 Control/Power Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with two network cables with no need to daisy chain the cameras directly
  • The max extension distance for power is 140-220ft with a 15v5a power supply (depends on the camera) and 100-170ft with a stock 12v power supply
  • The max extension distance for control is 4000ft

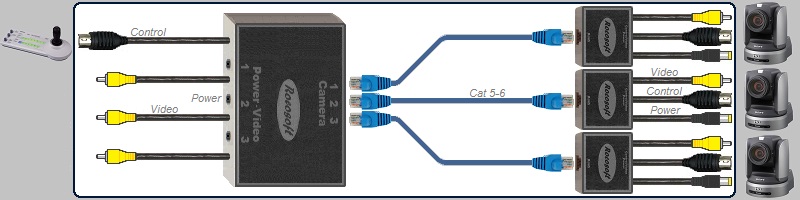

Sony RM-BR300-IP10 RS-232 VISCA PTZ Control-Video-Power Extendable Cable Set

RS-232 Control/Video/Power Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for the video signal with the Control/Power/Video set is 4000ft
  • Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc…
  • The max extension distance for control is 1000ft
Sony RM-BR300-IP10 RS-422 VISCA PTZ Control-Video-Power Extendable Cable Set

RS-422 Control/Video/Power Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with two network cables with no need to daisy chain the cameras directly
  • The max extension distance for power is 80-140ft with a 15v5a power supply (depends on the camera) and 60-120ft with a stock 12v power supply
  • The max extension distance for the video signal with the Control/Power/Video set is 400ft
  • Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc…
  • The max extension distance for control is 4000ft
Sony RM-BR300-IP10 RS-232 VISCA PTZ Control-HD-SDI Video-Power Extendable Cable Set

RS-232 Control/HD-SDI Video/Power Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply
  • We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details
  • The max extension distance for the full HD-SDI video signal with the Control/Power/HD-SDI Video set is 130ft using CAT6 cable
  • It is backward compatible with Composite video. The max extension distance for Composite video with this set is 400ft
  • HD-SDI Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc…
  • The max extension distance for control is 1000ft.
Sony RM-BR300-IP10 RS-422 VISCA PTZ Control-HD-SDI Video-Power Extendable Cable Set

RS-422 Control/HD-SDI Video/Power Sony RM-BR300-IP10 Cable Set




View features. . .
  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with two network cables with no need to daisy chain the cameras directly
  • The max extension distance for power is 80-140ft with a 15v5a power supply (depends on the camera) and 60-120ft with a stock 12v power supply
  • The max extension distance for the full HD-SDI video signal with the Control/Power/HD-SDI Video set is 130ft using CAT6 cable
  • It is backward compatible with Composite video. The max extension distance for Composite video with this set is 400ft
  • HD-SDI Video can be connected to a TriCaster, Livestream, vMix, any Live Production, Broadcasting, or Webcasting station, video grabber, DVR, TV, monitor, etc…
  • The max extension distance for control is 4000ft
Description
Technical Specifications

Sony RM-BR300/IP10 Controller Cable Sets

Our Cable sets for the Sony RM-BR300 and IP10 Controllers allow multiple cameras to be connected to these Controllers using a single cable to connect them. Not only that, but you can also run Control/Video/Power to each camera all over Ethernet.

Each set contains a Main Unit (large black box) and a number of Baluns (small black boxes) equal to the amount of cameras supported by the set. The Main Unit contains the RJ-45 connectors that connect the Baluns to the Main Unit along with any Video or Power jacks. Each Balun includes a single RJ-45 connector which is used to connect to the Main Unit, a Control cable (different between RS-232 and RS-422), and a Video/Power cable if it's part of the set.

For example, a, RS-232 Three Cam Control/Power set would include the Main Unit which contains three RJ-45 connectors, three 12v power jacks for POE, and a control cable that plugs into the Sony Controller, and then three Baluns each with a DIN-8 control cable and a 12v Power Cable sticking out of them for the camera connection. Each Balun is connected to the Main Unit using an Ethernet cable, so the Control AND Power signals are both sent over Ethernet.

All of our Cable Sets are made by hand by our skilled Technicians. Because of this, we are able to focus heavily on reliability - our hardware sets are practically indestructible.

Rocosoft Sony RM-BR300/IP10 Set Features

  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for control is between 1000ft and 4000ft. Check the features of each set for a specific number

RS-232 Cable Sets

Manufacturer

Rocosoft Inc.

Supported Cameras

Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
NewTek: NDI NDIHX PTZ1
Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
Datavideo: PTC-120, PTC-100, PTC-150
Elmo: PTC-100s
Infocus: INF-SPTZ-2 REALCAM
Marshall: VISCA Cameras
Hitachi: VISCA Cameras
Bolin: VISCA Cameras
Ross: Pivotcam
1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
All other PTZ cameras with a Mini Din8 RS-232 connector

Cable Type

Serial RS-232

Control Set Details

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera.

Baluns*: RJ45 Connector for Main Unit connection, DIN8 control cable for Camera Connection.

*1 Balun per camera

Control/Power Sets

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera.

Baluns*: RJ45 Connector for Main Unit connection, DIN8 cable for Camera Connection, 12v Power Output Cable for Camera.

*1 Balun per camera

Control/Video/Power Sets

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera, 1 Composite Video Output Jack for each Camera.

Baluns*: RJ45 Connector for Main Unit connection, DIN8 cable for Camera Connection, 12v Power Output Cable for Camera, Composite Video Input Cable.

*1 Balun per camera

Control/HD-SDI Video/Power Sets

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera, 1 BNC Video Output Plug for each Camera.

Baluns*: RJ45 Connector for Main Unit connection, DIN8 cable for Camera Connection, 12v Power Output Cable for Camera, HD-SDI Video Input Cable.

*1 Balun per camera

Number of Cameras

2, 3, or 4.
Contact us for 5-Cam+ sets.

RS-422 Cable Sets

Manufacturer

Rocosoft Inc.

Supported Cameras

Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
NewTek: NDI NDIHX PTZ1
Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
Datavideo: PTC-120, PTC-100, PTC-150
Elmo: PTC-100s
Infocus: INF-SPTZ-2 REALCAM
Marshall: VISCA Cameras
Hitachi: VISCA Cameras
Bolin: VISCA Cameras
Ross: Pivotcam
1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
All other PTZ cameras with a Mini Din8 RS-232 connector

Cable Type

Serial RS-422

Control Set Details

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera.

Baluns*: RJ45 Connector for Main Unit connection, DIN8 control cable for Camera Connection.

*1 Balun per camera

Control/Power Sets

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera.

Baluns*: RJ45 Connector for Main Unit connection, RS-422 cable for Camera Connection, 12v Power Output Cable for Camera.

*1 Balun per camera

Control/Video/Power Sets

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera, 1 Composite Video Output Jack for each Camera.

Baluns*: RJ45 Connector for Main Unit connection, RS-422 cable for Camera Connection, 12v Power Output Cable for Camera, Composite Video Input Cable.

*1 Balun per camera

Control/HD-SDI Video/Power Sets

Main Unit: DIN8 Control Cable for RM-BR300/IP10 Connection, 1 RJ45 connector per Camera, 1 12v Power Jack Input for each Camera, 1 BNC Video Output Plug for each Camera.

Baluns*: RJ45 Connector for Main Unit connection, RS-422 cable for Camera Connection, 12v Power Output Cable for Camera, HD-SDI Video Input Cable.

*1 Balun per camera

Number of Cameras

2, 3, or 4.
Contact us for 5-Cam+ sets.
