RS-422 Control/Power Sony RM-BR300-IP10 Cable Set

$799.95$1,599.95

PRODUCT HIGHLIGHTS:

  • An easy way to connect multiple remote PTZ cameras to Sony Joystick Controller
  • RS-422 VISCA Control and Power over two CAT cables
  • Works with Sony RM-BR300 and RM-IP10 Joystick Controllers
Clear

Description

Rocosoft Sony RM-BR300 and RM-IP10 Joystick RS-422 Control and Power Multi-Camera Extendable Cable Set.

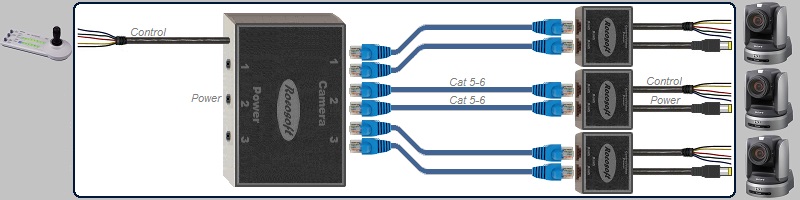

Rocosoft Sony Joystick Rs-422 Control/Power Cable Set connects multiple VISCA PTZ cameras to Sony RM-BR300 Joystick Controller or Sony RM-IP10 Joystick Controller. It also supplies cameras with power.
Each camera connects to the Multiplexer Unit with two network cables with no need to daisy chain the cameras directly.

Features:

  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with two network cables with no need to daisy chain the cameras directly
  • The max extension distance for power is 140-220ft with a 15v5a power supply (depends on the camera) and 100-170ft with a stock 12v power supply.
  • The max extension distance for control is 4000ft.
Manufacturer

Rocosoft Inc.

Supported Cameras

Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
NewTek: NDI NDIHX PTZ1
Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
Datavideo: PTC-120, PTC-100, PTC-150
Elmo: PTC-100s
Infocus: INF-SPTZ-2 REALCAM
Marshall: VISCA Cameras
Hitachi: VISCA Cameras
Bolin: VISCA Cameras
Ross: Pivotcam
1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
All other PTZ cameras with a Mini Din8 RS-232 connector

Cable Type

Serial RS-422

Connector Type

Multiplexer Unit: RS-422 Wiring for Control In, 2xRJ45 for camera connections, RJ45 for uplink, EIAJ-4 Female Power Jacks
Camera Units: 2xRJ45 for Multiplexer connection, RS-422 Wiring, EIAJ-4 Male Power Plug

Number of Cameras

2 Camera Set, 3 Camera Set, 4 Camera Set, 5-7 Camera Set – Contact us

Need a solution to connect your PTZ Cameras?

Rocosoft PTZ Camera Connect and Control Solutions





Simplify your setup and pair our PTZJoy PTZ Camera Controller Software with our PTZ Camera Control Cable Sets that connect remote PTZ cameras to a PC, NewTek TriCaster, Livestream, vMix, Wirecast, Telemetrics Control Panel, or Sony RM-BR300/IP10 Controller for a complete solution to connect and control your PTZ Cameras.

We specialize in extending VISCA control, HD-SDI video, composite video, and power signals over CAT network cables up to 1000ft and offer multiplexers and CAT extenders that take the guess work out of setting up your PTZ cameras.
