RS-232 Control Sony RM-BR300-IP10 Cable Set

PRODUCT HIGHLIGHTS:

  • An easy way to connect multiple remote PTZ cameras to Sony Joystick Controller
  • VISCA Control over a single CAT cable
  • Works with Sony RM-BR300 and RM-IP10 Joystick Controllers

Rocosoft Sony RM-BR300 and RM-IP10 Joystick Control Multi-Camera Extendable Cable Set.

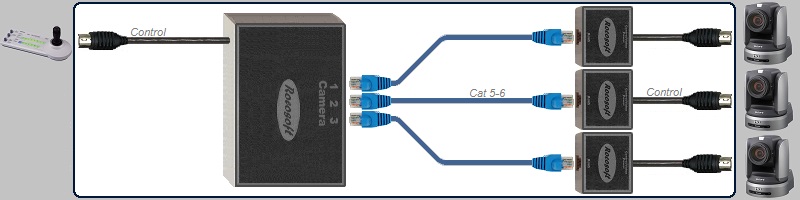

Rocosoft Sony Joystick Control Cable Set connects multiple VISCA PTZ cameras to Sony RM-BR300 Joystick Controller or Sony RM-IP10 Joystick Controller. Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly.

Features:

  • Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
  • Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
  • The max extension distance for control is 1000ft.
Manufacturer

Rocosoft Inc.

Supported Cameras

Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
NewTek: NDI NDIHX PTZ1
Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
Datavideo: PTC-120, PTC-100, PTC-150
Elmo: PTC-100s
Infocus: INF-SPTZ-2 REALCAM
Marshall: VISCA Cameras
Hitachi: VISCA Cameras
Bolin: VISCA Cameras
Ross: Pivotcam
1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
All other PTZ cameras with a Mini Din8 RS-232 connector

Cable Type

Serial Din8 RS-232

Connector Type

Multiplexer Unit: Din8 control In, RJ45 for camera connections, RJ45 for uplink
Camera Units: RJ45 for Multiplexer connection, Mini-DIN8 Male Plugs

Number of Cameras

2 Camera Set, 3 Camera Set, 4 Camera Set, 5-7 Camera Set – Contact us
