RS-232 Control/Power Sony RM-BR300-IP10 Cable Set
- An easy way to connect multiple remote PTZ cameras to Sony Joystick Controller
- VISCA Control and Power over a single CAT cable
- Works with Sony RM-BR300 and RM-IP10 Joystick Controllers

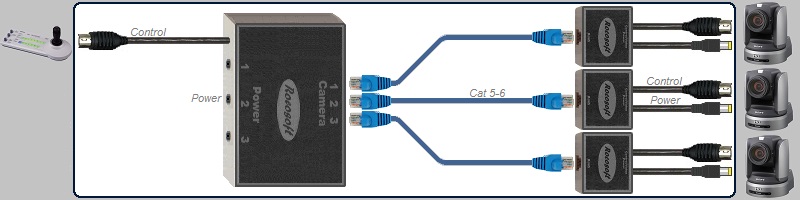

Rocosoft Sony RM-BR300 and RM-IP10 Joystick Control and Power Multi-Camera Extendable Cable Set.Rocosoft Sony Joystick Control/Power Cable Set connects multiple VISCA PTZ cameras to Sony RM-BR300 Joystick Controller or Sony RM-IP10 Joystick Controller. It also supplies cameras with power. Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly.
- Allows PTZ camera control from Sony RM-BR300 Joystick controller or Sony RM-IP10 Joystick controller
- Each camera connects to the Multiplexer Unit with a single network cable with no need to daisy chain the cameras directly
- The max extension distance for power is 55-120ft with a 15v5a power supply (depends on the camera) and 40-80ft with a stock 12v power supply.
- We can build this set with two CAT cable runs to each camera so the extension distance for power can be tripled. Please contact us for details.
- The max extension distance for control is 1000ft.
Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, and all newer Sony Visca PTZ cameras.
Serial Din8 RS-232
Multiplexer Unit: Din8 control In, RJ45 for camera connections, RJ45 for uplink, EIAJ-4 Female Power Jacks
|Number of Cameras||
2 Camera Set, 3 Camera Set, 4 Camera Set, 5-7 Camera Set – Contact us
Need a solution to connect your PTZ Cameras?
Simplify your setup and pair our PTZJoy PTZ Camera Controller Software with our PTZ Camera Control Cable Sets that connect remote PTZ cameras to a PC, NewTek TriCaster, Livestream, vMix, Wirecast, Telemetrics Control Panel, or Sony RM-BR300/IP10 Controller for a complete solution to connect and control your PTZ Cameras.
We specialize in extending VISCA control, HD-SDI video, composite video, and power signals over CAT network cables up to 1000ft and offer multiplexers and CAT extenders that take the guess work out of setting up your PTZ cameras.
