PTZJoy™ PRO – PTZ Camera Controller Software

$699.95

PRODUCT HIGHLIGHTS

  • Works on PC, Laptop, Tablet, TriCaster, vMix, Wirecast, OBS, Livestream
  • Precise control of Pan/Tilt/Zoom/Focus/Iris functions with variable speed
  • Supports all Professional and Gaming USB Joysticks
  • Customize Preset Tiles with your own graphics or images
  • Use PTZLive™ Visual Preset Panel with live video background over NDI Studio Monitor
  • Control cameras from anywhere using any device with a Web Browser
  • Schedule timed tasks for your cameras to complete using the Task Scheduler
  • Camera Control from external programs using Macros and HTTP requests
  • On-Screen-Display (OSD) camera menu access
  • Iris, Shutter, Gain, White Balance, R-Gain, and B-Gain Monitoring and Adjustment

PTZ Camera Controller Software for IP or Serial PTZ Cameras

PTZ Camera Controller PRO controls IP or Serial Port PTZ cameras from any computer, tablet, laptop, TriCaster, vMix, Livestream, and other Live Production systems. Works with Sony, Panasonic, NewTek, Canon, Hitachi, Marshall, Vaddio, PTZOptics, Lumens, Datavideo, Huddlecam, AJA, Bolin, Aver, Logitech, Pelco and all other Broadcasting IP and VISCA PTZ cameras.

Replace the limited functionality hardware joystick controller with a more precise and powerful computer-based controller that can control multiple PTZ cameras, works with any wired or wireless professional or gaming USB Joystick, has a precise virtual on-screen joystick, keyboard shortcuts, far-end camera control, OSD Menu access, advanced preset management tools, PTZLive™ Visual Preset Control Panel, Multi-Camera Direct Control Panel, and more.



PTZ Camera Controller PRO Features view more details

  • Precise control of Pan/Tilt/Zoom/Focus/Iris functions with any USB Joystick
  • Supports all Professional and Gaming USB Joysticks
  • Easily customize USB Joystick Buttons to your liking
  • Simultaneous Pan, Tilt, and Zoom Joystick Control with Variable Speed
  • Control Cameras using keyboard hotkeys
  • Smooth Camera Control with on-screen Virtual Joystick
  • Web Remote - Control from anywhere in the world using any device with a Web Browser
  • Iris, Shutter, Gain, White Balance, R-Gain, and B-Gain Monitoring and Adjustment



  • Save and recall up to 32 Internal and 32 External camera presets
  • Control speed of preset recall
  • Visualets - Assign any image/graphic to a preset for easy organization
  • Schedule automated tasks for your cameras to complete with Task Scheduler
  • Visualize your environment with PTZLive Visual Preset Control Panel Mini
  • Camera Control from external programs using Macros and HTTP requests
  • Auto Pan and Preset Scan
  • 3 Slow Joystick Modes, X-Joystick Mode, Soft Joystick Mode
  • Precise Pan, Tilt, Zoom, Focus Speed Monitor
  • On-Screen-Display (OSD) camera menu access
Gallery

PTZJoy Pro on PC

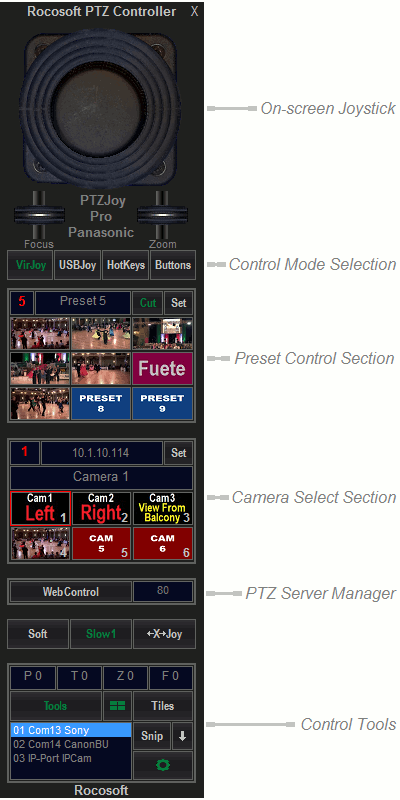

Main and Tools Panels

WebRemote on an iPhone

Three modes of PTZJoy Pro Controller

PTZJoy Pro on vMix and TriCaster

Videos



Rocosoft PTZJoy Controller Introduction



How to Control PTZ Cameras with Rocosoft PTZJoy Controller



How to Set and Recall Presets with Rocosoft PTZJoy Controller




Supported IP PTZ Cameras


  • Sony: BRC-X1000, SRG-120, SRG-300, SRG-360, BRC-X400, and all newer IP Cameras
  • NewTek: NDI NDIHX PTZ1, NDI PTZUHD, and all newer IP Cameras
  • Telycam: TLC-700-IP-35-4K, TLC-300-IP-12-4K, TLC-300-IP-12, TLC-300-IP-20, TLC-300-IP-5-4K
  • Lumens: All Lumens IP PTZ Cameras
  • iSmart: All iSmart IP cameras
  • Marshall: All Marshall IP Cameras
  • Birddog: All Birddog IP Cameras
  • Angekis: All Angekis IP Cameras
  • PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB, 12X-SDI-G2, 12X-USB-G2, 20X-SDI-G2, 20X-USB-G2, and all newer cameras.
  • Minrray: All IP Cameras
  • Fla: All IP Cameras
  • Nova: All IP Cameras
  • Avonic: All IP Cameras
  • SMTAV: All IP Cameras
  • Qsc: All IP Cameras
  • Avipas: All IP Cameras
  • Clevermic: All IP Cameras
  • ValueHD: All IP Cameras
  • Sony IPELA: all Sony IPELA IP PTZ Cameras
  • Panasonic: AW-HE2, AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-HE150, AW-UE70, AW-UN70, AW-HR140, AW-HE65, AW-UE4, AW-HE38, AW-HE58, AW-HE35, AW-HE48, AW-HE42, and all newer Panasonic IP cameras.
  • Datavideo: PTC-150, PTC-200, and all newer IP Cameras

Supported Serial Port PTZ Cameras


  • Sony: BRC-X1000, BRC-300, BRC-H300, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, SNC-RZ30, EVI-H100S, EVI-H100S/W, EVI-H100V, EVI-H100V/W, EVI-HD1, EVI-HD3V, EVI-HD7, EVI-DHD7V, SRG-300H, SRG-300SE, SRG-120DH, SRG-360, PCS-HG90, PCSA-CHG90, EVI-D30, EVI-D31, EVI-D70, EVI-D80, EVI-D90, EVI-D100, EVI-D100P, EVI-D20G, BRC-X400, and all newer Sony Visca PTZ cameras.
  • Panasonic: AW-HE40, AW-HE50, AW-HE60, AW-HE120, AW-HE130, AW-UE70
  • NewTek: NDI NDIHX PTZ1, NDI PTZUHD, and all newer VISCA Serial Port controlled cameras
  • Vaddio: RoboShot, ClearVIEW HD-18-19-20, ClearVIEW HD-USB, PowerVIEW HD-22-30, WallVIEW HD-18-19
  • HuddleCam HD: 3X, 10X 720p, 10X, 3X Wide, 12X, 18X, 20X, 30X
  • PTZOptics: 12X-IP, 12X-USB, 20X-IP, 20X-USB
  • Lumens: VC-A20P, VC-A202P, VC-G30, VC-G50, VC-200
  • Datavideo: PTC-120, PTC-100, PTC-150
  • Elmo: PTC-100s
  • Infocus: INF-SPTZ-2 REALCAM
  • Marshall: VISCA Cameras
  • Hitachi: VISCA Cameras
  • Bolin: VISCA Cameras
  • iSmart: VISCA Cameras
  • Minrray: VISCA Cameras
  • Ross: Pivotcam
  • Cisco/Tanberg: Precision 12x, Precision 40, Precision 60, and other Tandberg/Cisco cameras
  • 1 Beyond: PTZ-S20, PTZ-IP12, PTZ-IP20, PTZ-IP30, Auto Tracker 2, AutoTracker 2 IP
  • All other PTZ cameras with a Mini Din8 RS-232 connector, or 9pin RS-422 Connector, or RJ45 RS-422 connector for control
  • Canon: XU-80, XU-81, BU-46h, BU-47h, BU-51h, NU-701, NU-701N
  • Pelco: All ptz security, dome, and video conferencing cameras that use Pelco protocol
  • All other PTZ cameras that use Pelco protocol over RS-485 connection

Supported Operating Systems:

  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10

Supported Production Systems:

  • TriCaster Mini
  • TriCaster TC1
  • TriCaster 40
  • Tricaster 410
  • TriCaster 455
  • Tricaster 460
  • TriCaster 855
  • Tricaster 860
  • TriCaster 8000
  • TriCaster TCXD300
  • Livestream Studio HD31
  • Livestream Studio HD51
  • Livestream Studio HD510
  • Livestream Studio HD550
  • Livestream Studio HD1710
  • ALL vMix Editions
  • ALL Wirecast Editions

Supported Joysticks

All USB, bluetooth, and gaming joysticks that can be recognized by Windows OS are supported for use with Rocosoft PTZ Camera Controller Software. Here are some examples of joysticks that are supported:

Logitech 3D PRO

Logitech Attack 3

CH Fighterstick USB Joystick

CH Combatstick

Thrustmaster USB Flightstick

Thrustmaster HOTAS WARTHOG

CH Products USB PTZ Joystick Controller

CH Products AXIS

Ipega Controller

Xbox Controller

Xbox 360 Controller

PS3 Controllers

PS4 Controllers




Purchasing PTZ Camera Controller Software


PTZJoy™ PRO PTZ Camera Controller works with all IP or Serial Port PTZ cameras and can control different camera brands and protocols by selecting your camera's core protocol in the program.

Once you purchase PTZ Camera Controller Software, you will receive an email with a download link and activation instructions.

With 3 editions of our PTZ Camera Controller Software, you can choose the level of control that fits your needs. If down the road you find you need more functionality, you can always upgrade your edition for only the difference in price.

We are here to support you! With over 20 years in this industry, we have thousands of satisfied customers worldwide and our support is the best in industry. Support is available for as long as you own your Rocosoft product. Please don't hesitate to reach out to us for help with your order, help with installation, or help with using our product. Contact us here.

PTZ Camera Controller comes in 3 Editions

Rocosoft PTZJoy Main PTZ Controller Software

PTZJoy

$399.95

The perfect starting place for PTZ Camera Control

Rocosoft PTZJoy Pro PTZ Controller Software

PTZJoy PRO

$699.95

Advanced camera control + preset management tools

Rocosoft PTZJoy Studio PTZ Controller Software

PTZJoy STUDIO

$1499.95

Complete Camera Automation and Control Studio

Rocosoft PTZJoy™ Edition Comparison Table

PTZJoy PTZJoy Pro PTZJoy Studio
Camera Control with any USB Joystick Yes Yes Yes
Camera Control with Virtual on-screen Joystick Yes Yes Yes
Camera Control with on-screen Pan-Tilt-Zoom-Focus Buttons Yes Yes Yes
Simultaneous Pan-Tilt-Zoom Joystick Camera Control with variable speed Yes Yes Yes
XBox and Gaming Joystick Camera Control with variable speed Yes Yes Yes
Connected and Switchable USB Joysticks 1 Up to 4 Up to 4
Joystick Button Mapping Profiles (Per Joystick) 1 4 4
USB Joystick Button Mapping Up to 12 Up to 30 Up to 30
Number of controlled Serial port cameras 24 24 28
Number of controlled IP cameras 6 6 8
Support of All Listed IP and Serial Port cameras Yes Yes Yes
Visual Preset Tiles with customizeable background images 9 9 16
Managed Internal Camera Presets (per camera) 16 32 255
External Presets stored in PTZJoy (per camera) 16 32 255
Variable Pan-Tilt Speed between Presets Yes Yes Yes
Camera Control with Keyboard Shortcuts Yes Yes Yes
Camera Control from external programs using Macros and HTTP requests Yes Yes Yes
Programmable Macro buttons 3 9 16
Programmable individual buttons to run custom commands 27 81 144
Real time Iris, Shutter, Gain, and White balance monitoring and control Yes Yes Yes
Far-end camera control from any device with a web browser Yes Yes Yes
Camera on-screen OSD Menu Access Yes Yes Yes
Pan-Tilt-Zoom-Focus Speed Monitor Yes Yes Yes
Automation with AutoPan and PresetScan Yes Yes Yes
Multi-Camera Direct Control Panel 2Cam 4Cam 4Cam
PTZLive Mini Visual Control Panel No Yes Yes
Automation with Task Scheduler No Yes Yes
Automation with Camera Tracer No No Yes
Automation with Timeline Task Manager No No Yes
Multi-Joystick Individual Camera Control No No Yes
UVC and NewTek NDI Video Monitor No No Yes
PTZJoy PTZJoy Pro PTZJoy Studio
$399.95 $699.95 $1499.95
Add to Cart Add to Cart Add to Cart
Manufacturer

Rocosoft Inc.

Media Type

PC Download – Software Installation and Activation Instructions sent via email along with User Manual.

Licensing

1 computer per license. Purchased software does not expire. License can be transferred to a different computer.
